8 & 4 Channel Solid State Relay Boards, SSR

Design Specialty, Inc. - Colorado Springs, Colorado - 719.488.3036

We Do Not Offer A Shopping Cart Because We Need Specifics About Your Application
So Please Call 719.488.3036 To Have This Discussion Before You Place Your Order

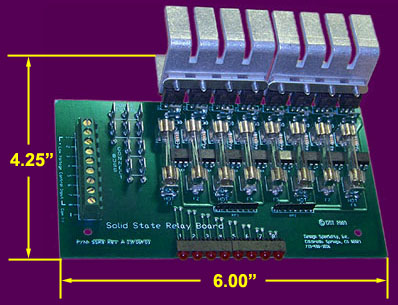

SSR8 - 8 Channel Solid State Relay Board $59.00 Each Assembled And Tested With Heat Sinks $49.00 Each For 5 Or More


Designed For Switching 120 VAC, 60 Hz Loads +5 VDC @ 5 Milliamps Activates Channel Compatible With TTL "Voltage Sourcing" Digital I/O Boards Individual LED Channel Indicators Terminal Block For Low Voltage Input Connections 1/4" Fast-On Male Terminals For Easy Power Connections Opto-Isolated Triac Drivers Permit PWM Dimming 12 Amp Minimum Isolated Tab Triacs Individual Channel Fusing - 6 Amps Standard Board Rated For 20 Amps Maximum Unmodified (300 Watts Per Channel With All Channels ON) Board Can Be Modified To Handle Higher Power Requirements (Instructions Provided With Order)

SSR25 - NEW 25 Amp Solid State Relay With Cover Limited Quantity Available $19.00 Each $15.00 Each 5 Or More


Rated For 25 Amp Load Capacity With Heat Sink Switches 24 To 330 VAC Loads Activated By 100 To 208 VAC Control Voltage Red LED Activation Indicator Opto-Isolated Zero Voltage Switching (No Dimming Capability) Screw Terminal Hardware Included For Easy Connections Plastic Safety Cover Snaps Over Terminal Connections Requires External Load Fusing Measures 2.25"L x 1.75"W x 0.9"H Without Cover

All Sales Subject To Stock On Hand And Prices May Change At Any Time Without Notice

Questions? Call 719.488.3036 To Discuss Your Lighting Application
